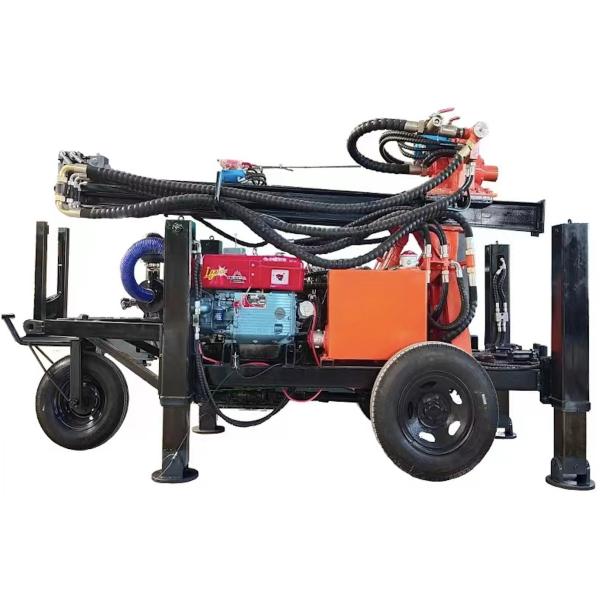

GL130T 130m Full Hydraulic Trailer Mounted Water Well Drill Rig for Shallow Wells
Description:
GL130T trailer mounted water well drilling rig is full hydraulic borehole machine. It is no problem to drill 130m, and it is available for both air percussion drilling and mud pump drilling. The cost is reasonable as well.
With trailer chassis, it is very easy to move. We can send you more reference pictures and reference videos if needed.
If you don't know how to choose a suitable one, please kindly send us an inquiry. We will recommend the most suitable model as per your detailed requirements.
Tehnical Parameter:
| The hole diameter (mm) | 100-219 |
| Drilling depth (m) | 130 |
| Drill pipe diameter (mm) | φ76, φ89 |
| Drill pipe length(m) | 1.5m, 2.0m |
| One-time stroke (m) | 2.3 |
| Walking speed(km/h) | 3.0 |
| Climbing angles(Max.) | 30 |
| Air pressure(MPA) | 1.45-2.5 |
| Air consumption (m3 /min) | 15-29 |
| Rotating speed(rpm) | 40-65 |
| Rig lifting force(T) | 6 |
| Rapid rise speed(m/min) | 15 |
| Fast feeding speed(m/min) | 23 |
| High leg stroke(m) | 0.6 |
| The feeding efficiency(m/h) | 10-35 |
| Diesel engine Brand | Changchai |
| Power(HP) | 32 |
| Rotating torque(N.m) | 2200-3000 |
| Dimension(mm) | 3850x1560x2050 |
| The weight (T) | 3 |
Company Profile

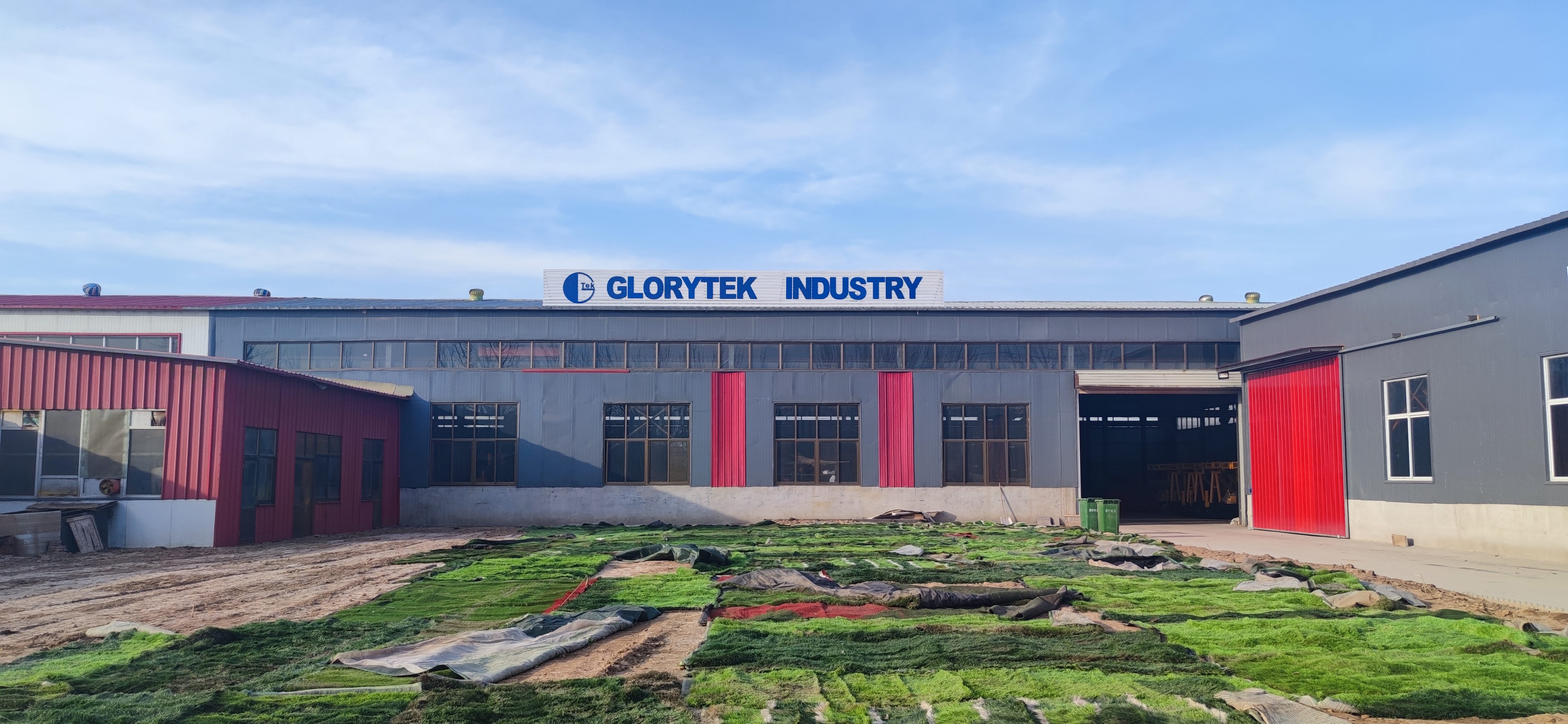

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
We have mature production lines and strict quality control team. In addition to various drilling rigs, we can also provide mud pumps, air compressors, drilling tools and other drilling products.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 20-25 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
We have been supplying drilling equipment and drilling tools for 20 years. Our products are exported to more than 60 countries. Our company is committed to long-term friendly and mutually beneficial cooperation, and we are constantly improving and optimizing our products. Welcome new and old customers to contact us. We will definitely be your reliable partner. Our contact information is as below:
