High-Pressure Water Well Drilling Drill Rod for Well Drilling
1.Description:
>Drill pipes that are used in applications such as DTH/ well drilling basically comprise of a steel tube with a pin at one end and a box on the other.
>The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools. Usually we are offering 50mm, 63.5mm, 76mm, 89mm, 102mm etc.
2.How to select the right Water Well Drill Rod ?
>What's the diameter of drill pipe ?
There are 42mm,50mm,63.5mm,76mm,89mm ,102mm,114mm and 127mm .
But 89mm and 114mm drill pipe are used large quantity .
>What's the length of drill pipe ?
There are 1.5m ,2m ,3m,4.5m,6m,6.1m,7.2m 9.5m etc.
1.5m,3m,6.1m,7.2m are used large quantity.
We also can produce the length as your request .
>What's the thread of drill pipe ?
There are API 2 3/8REG, 2 3/8 IF(NC26) ,2 7/8IF(NC31) ,3 1/2REG(NC38),NC40 etc thread.
3.Specifications:
| Outside diameter | Φ50 | Φ60 | Φ73 | Φ89 | Φ102 | Φ114 | Φ127 | | Outside diameter of joint (mm) | Φ65 | Φ75 | Φ105 | Φ127 | Φ133.4 | Φ158.8 | Φ168 | | Thickness (mm) | 6.5 | 7.1 | 9.19 | 9.5/10 | 8.38 | 8.56 | 9.19 | | Length (mm) | 1000~4500 | 1000~4500 | 1500~9500 | 1500~9500 | 3000~9500 | 1500~9500 | 5000~9500 | | |
4.Feature Advantage:
>When drilling a deep hole with a long auger rod, the drill rod is equipped with a split pin, which increases the transmission torque and greatly reduces the loss of the drill rod.
>It adopts plug-in threaded connection, which is convenient and quick to disassemble and assemble, has good sealing performance, high tensile strength, and high pile quality.
>Good verticality, easy to disassemble and install.

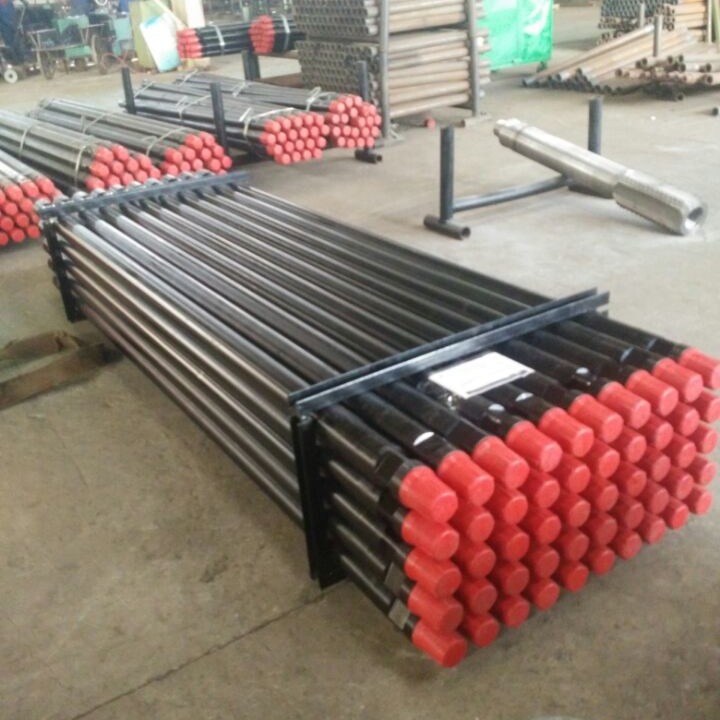

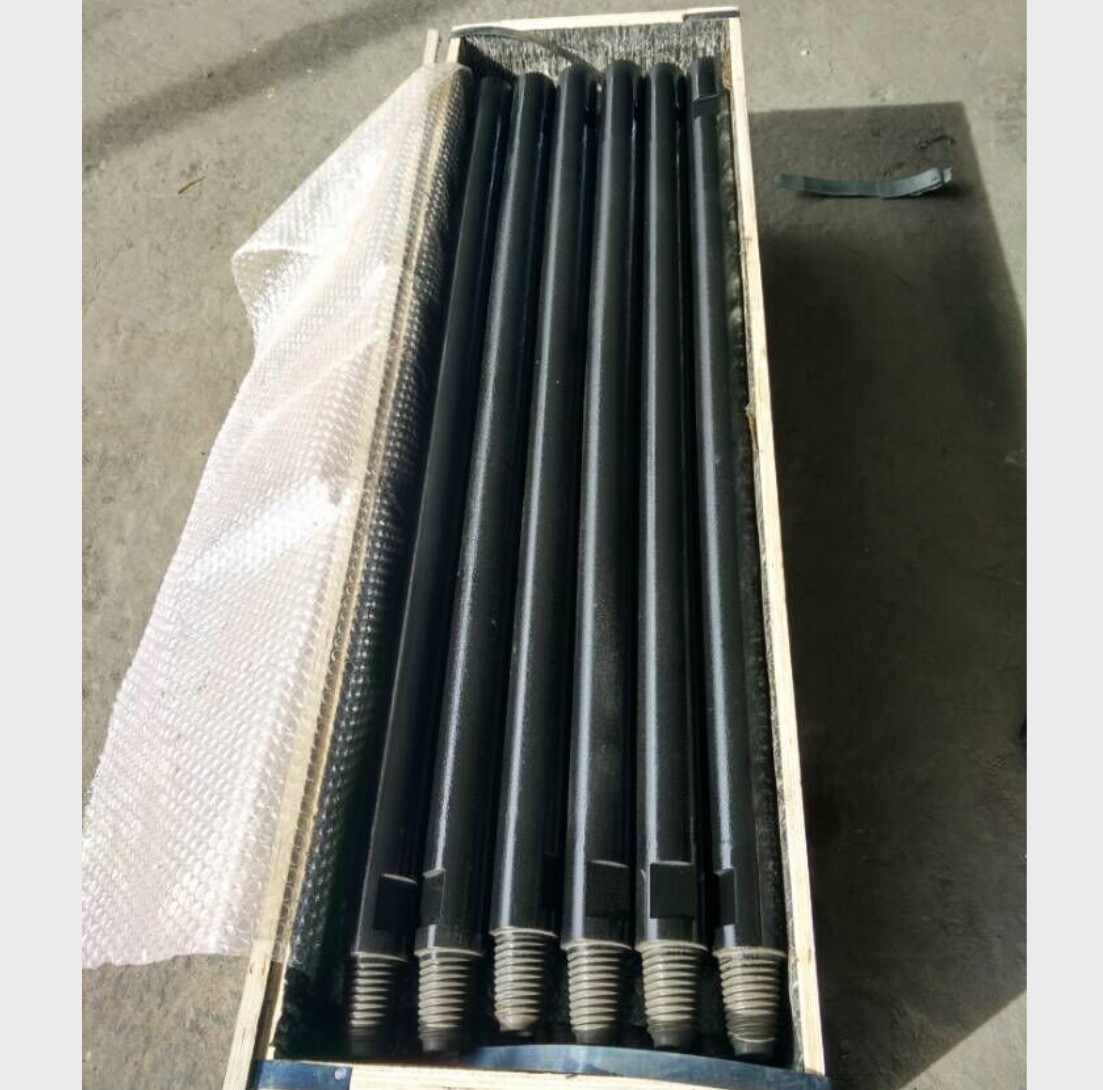

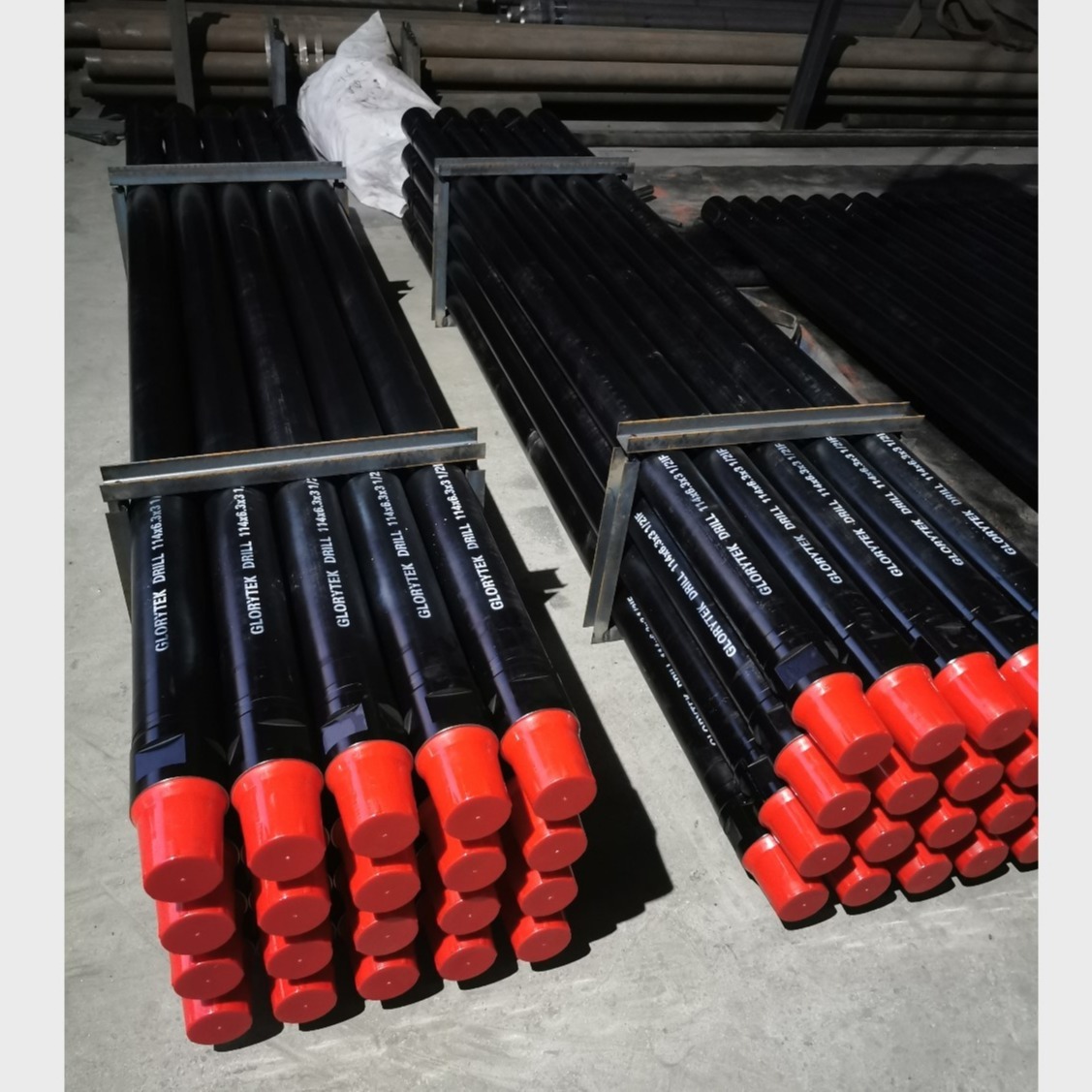

5.The Photo of products

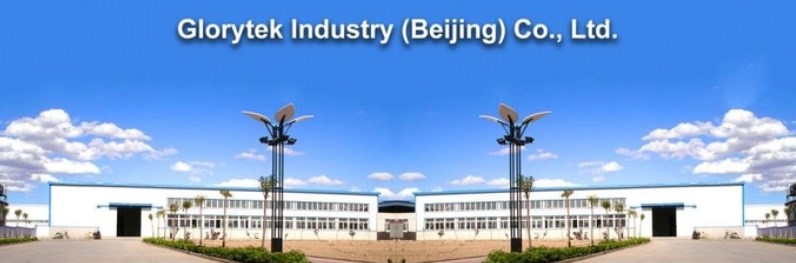

Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Certificate
FAQ
Q: Are you a manufacturer?
A: Yes, we manufacture various drilling products, including DTH hammer, high and low air pressure DTH bits, drilling rods,thread drilling bits, taper button bits, chisel-bits, crodd-bits, etc.
So we are a one-stop supplier of full range of rock drilling products.
Q.What kind terms of payment can be accepted?
A: T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment
Q: Can you customize the product?
A: We can customize products according to your required diameter, face shape, button size and color. We can produce by your samples or technical drawings.
