GL-II Water Well Drill Rig Trailer Mounted 250m Depth 90-1200mm Hole Diameter

Name: GLII Water Well Drill Rig Trailer Mounted 250m Depth 901200mm Hole Diameter
Brand: Glorytek
Price: 17000 USD

Brand Name : Glorytek

Model Number : GL-II

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD17000-20000 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per year

Delivery Time : 15-25days

Packaging Details : Seaworthy packing

The hole diameter : 90--1200mm

Drilling depth : 250m

Drill pipe diameter : φ60 φ73 φ89 φ95

Mask Up-Down : Hydraulic Drive

Contact Now

GL-II Trailer Mounted Drilling Rig

Application

- Drilling wells for urban and rural life

- Drilling wells for agricultural irrigation and industries

- Drilling for geotechnical survey

- Drilling construction engineering holes

- Drilling geothermal pump wells

Advantage

- Move easily & good mobility
- Simple operation & high efficiency
- Commercial Price.

Product Parameter

Hole diameter(mm): 90--1200	Dimensions(mm)(L-W-H)Working conditions :4910×2020×6650
Hole depth(m): 250M	Transport status(mm): 6700×2020×2750
Run Of Rod(m): 3-6	Supporting Form: Mechanical Screw
Drill rod diameter(mm): φ60 φ73 φ89 φ95	Mask Up-Down: Hydraulic Drive
Drilling Technology: Normal and Reverse Circulation for both Mud and Air	Rig mass(Kg): 3400
Down-The-Hole hammers:Middle-High-Pressure Air	Chassis: Trailer with two wheels
Drill Head Inside Diameter :φ35 φ60 φ81 φ120	Power Unit: Diesel Engine
Drill Head Lifting Speed(m/s): 0.25 0.15	Power(kW): 40
Drill Head lifting Force(T): 15	Pump :LBN-20 Normal and Reverse circulation pump group
Drill Head Spin Speed: A(Forward:13-22-48,Reverse (r/min): 10-17-36	Flow(m3/h): 80
	Main Hoist Lifting Force(kN): 2.5T
B(Forward:48-84-184,Reverse (r/min): 37-65-142	Feed Thrust(kN): 2T

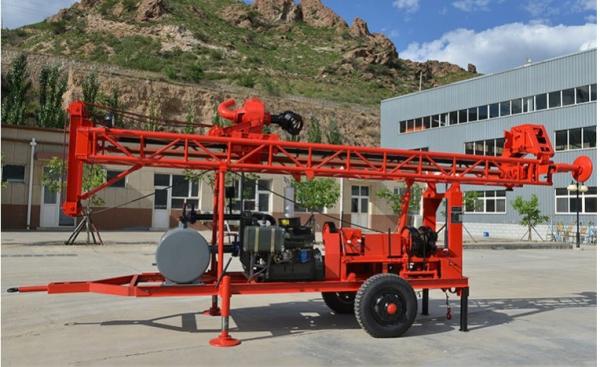

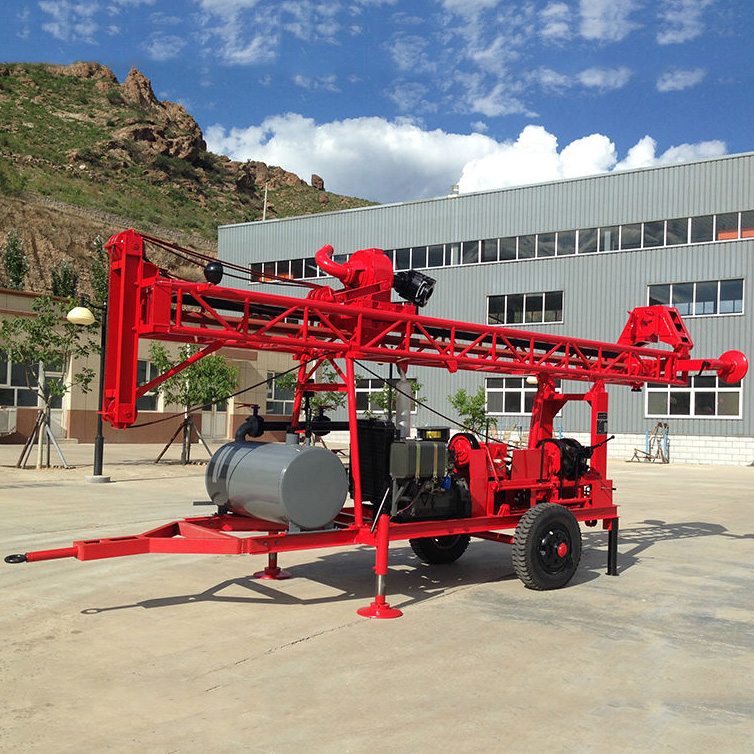

Product Picture

GL-II Water Well Drill Rig Trailer Mounted 250m Depth 90-1200mm Hole Diameter

Company Profile

Glorytek Industry (Beijing) Co., Ltd.

Glorytek Industry (Beijing) Co., Ltd. Is a professional manufacturer and supplier of top quality drilling equipment and drilling parts with over 20 years experience. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per specified requirements from our clients.
Our products are widely used in the scope of water well drilling project, geological exploration and SPT, anchor grouting project, side slope protection engineering, oil and gas engineering, rock drilling and blasting operations, hdd( horizontal directional drilling) for city construction pipeline laying project etc.
Our factory covers an area of 250,00 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. Over 200 sets and more than 600 employees.
